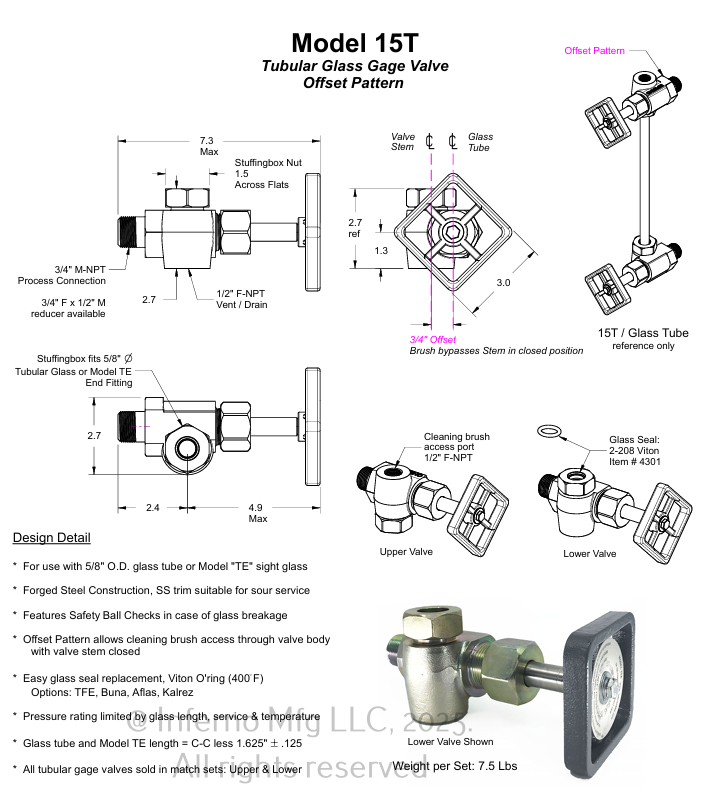

15T Gage Valves

Product Information
Conventional style, Carbon steel gage valves for 5/8" O.D. glass tube or model TE armored tubular sight glass

Offset pattern allows easy cleaning of glass tube

All wetted parts conform to NACE MR0175

3/4" M-NPT vessel connection size

Length of glass tube or model TE = Vessel C-C minus 1.625"

Automatic safety ball checks are included

Viton glass seals, O-ring size 2-208

Rated to 600 PSI (limited by the rating of the glass)
Gage Selector
Features
FEAT.
Specs
SPECS
Documents
DOC.
Accessories
ACC.
Gage Glass
Gage Glss.
Attachments
ATT.
Offset Pattern
Automatic safety ball checks
Rigid Vessel Connection
Weight per set 7.5 lbs
1/2" F-NPT Vent and Drain
Corrosion resistant SS trim

Non-Frost

Prevents condensation from accumulating on the outside face of the glass
Learn more →

Mica Shield

Barrier that protects the glass from etching, pitting, or clouding the bare glass
Suitable for Transparent Gages
Learn more →

LG-Scale

Scales are stocked in aluminum
Learn more →

Insulated Jacket

Insulation jackets are custom fitted, reusable thermal covers that reduce heat loss
Learn more →

Belleville Spring Washers

Used for level gages that experience thermal expansion or vibration
Learn more →

Welded Gage Support Bracket Kit

Provides rigid vibration resistant mounting
Learn more →

No Weld Gage Support Bracket Kit

Field installable mount system that securely holds a flat glass level gage in place without any welding
Learn more →

Led Illuminator

Will improve visibility in low-light, foggy, or dirty conditions
Learn more →

Bare Glass

Optional Expanded Metal Guard
Learn more →

Model TE

Armor: Slotted both front and back
See-thru visibility
Learn more →

Model ATS

Direct Mount
Learn more →
Single Union
Double Union
Side Connected Close Hookup
Back Connected Close Hookup
