Prismatic glass, a 2-phase system (Liquid - Vapor)
Product Information

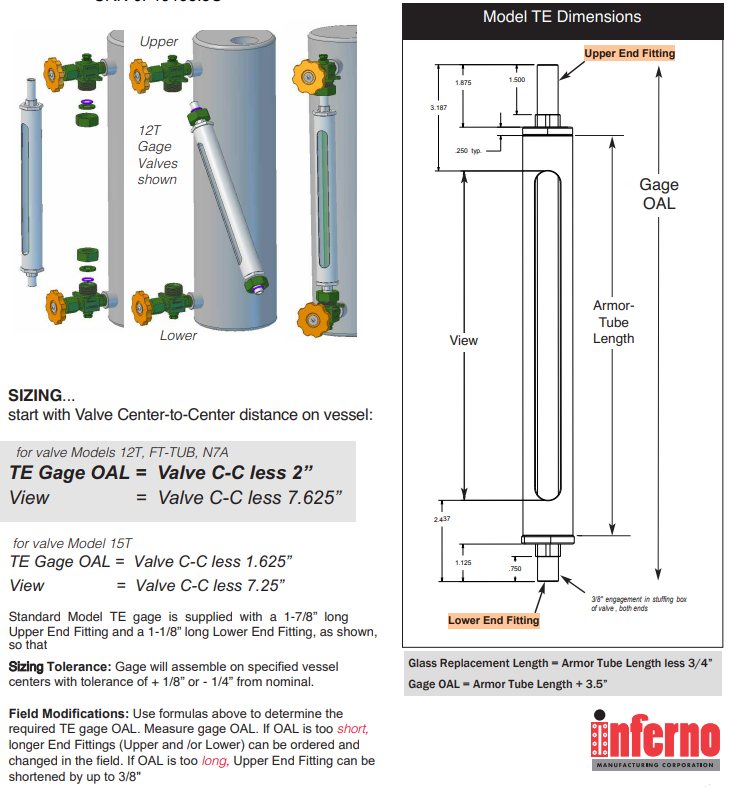

Model TE Tubular sight glass is custom made to fit on vessel centers
T316 stainless steel wetted (SS non-wetted) with 5/8" O.D. clear borosilicate glass tube, viton glass seals and lexan guard
Armor slotted in front and back for see through visibility
5/8" smooth end fittings
Rated 315 PSI @ 150°F regardless of length

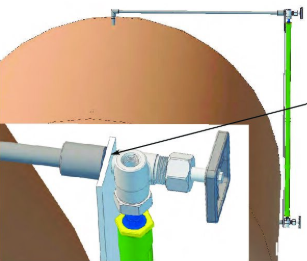

Stabilizers are positioned behind cross ties every 15" or less to restrain lateral movement of tube
Pressure vs Temperature Ratings – Gage NOT rated for steam because of high corrosion rates in hot water – Pressure ratings are valid only when outer ring bumpers are maintained. 315 psi @ 150° F 305 psi @ 200° F 300 psi @ 250° F (non Steam) 290 psi @ 300° F (non Steam) 280 psi @ 350° F (non Steam) 275 psi @ 400° F (non Steam) 270 psi @ 425° F (non Steam)… AFLAS required above 400° F
