Tubular Glass Type Level Gage
OVERVIEW

Tubular Glass Type Level Gage

This guide outlines the available Level Gage (LG) and Gage Valve (GV) connection and orientation options. It is designed to help you quickly identify the correct configuration based on installation requirements, valve type, and desired orientation.

Non-armored

LP-100
Valve
Combo
LP-101
Valve
Combo
LP-102
Valve
Combo
LP-103
Valve
Combo
  • Clear or Redline
  • * 5/8" O.D. x 7/16" I.D., or
    * 5/8" O.D. x 1/4" I.D. "Extra Heavy Wall"
  • Accessories:
    - Expanded Metal Guard Protector w. SS Hose Clamps
    - SS Guard Rods
    - Strongback for extended piping leg
  • Offset Pattern valve body with 1/2" NPT vent / drain ports allow "straight through" access for cleaning brush. No glass disassembly required.

Armored - Model TE

LP-201
Valve
Combo
LP-202
Valve
Combo
LP-203
Valve
Combo
  • Clear (Redline option)
  • T316 SS wetted, T304 SS non-wetted
  • 5/8" diameter smooth end fittings - fits 5/8" stuffingbox
  • Armor: Slotted both front and back for see-thru visibility
  • O-Ring Seals: Size -208, Viton (400_F max)
  • Optional Lexan guard
  • CRN 0F19193.5

Armored Tubular Glass "Close Hook-Up" Clean Service Only Model ATS

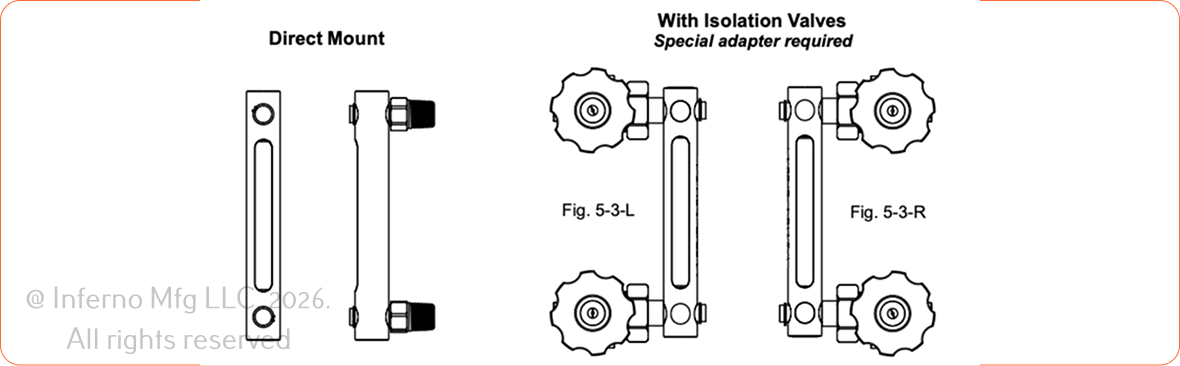

Model ATS — With Isolation Valves and Direct Mount
Direct Mount
LP-321
With Isolation Valves
LP-322
  • T316 SS wetted, T304 SS non-wetted
  • Redline glass tube for clear liquids
  • 1/2" MNPT process connection
  • Can be fitted with model 12T-CS or 12T-SS valves
  • Recommended for fuel gas, clean water, clean solvent, etc... NOT for general oilfield
  • Optional Lexan guard
  • CRN 0F19193.5
Gage Selector

REFERENCE DOCUMENTS

Documents

Drawing Information

  • Drawing No: GA.ASSY-Tubular
  • Drawing Date: 9/29/2020
  • Revision: A
  • Rev Date: 2/9/2022
  • © 2020 Inferno Mfg Corp
  • Sheet: 1/1
